Model No.: STC100

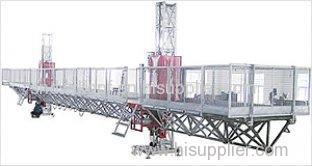

Working Height 100 m 1700 kg Double Mast Climbing Work Platform

Descrition:

Working Height 100 m 1700 kg Double Mast Climbing Work Platform

Descrition:

Mast climbing work platform is Shenxi's newly-researched and designed aerial work equipment, which adopts the latest technological advances and develops on the basis of traditional suspended access platform. It embodies lots of superior features and does play an indispensable part in large-scale construction work at height, especially in worksites where the suspending mechanisms are unable to install.

The main parts of Mast climbing work platform can be interchanged with building hoist such as mast sections, rack, pinion, reducing device and so on. And its width and length can be changed according to requirement. It is requisite equipment in construction job. Additionally. It is no need for foundation so that it is easy to change the working site

Specifications:

		Single Mast	Double Mast
Rated Capacity		1000 kg	1700 kg
Rated Lifting Speed		8.3 m/min
Max. Working Height		100 m
Max. Height of Stand-alone Installation		7.5 m
Length of Platform		8.67 m	20.34 m
BasicWidth of Platform		1.5 m
Max.Width of Platform		2.5 m
Size of Standard Section		1508×500×500 mm
Motor	Type	YZZ 132 S1-4
	Power	2×5.5 kW	4×5.5 kW
	Rated Rotation Speed	1400 r/min
	Rated current	13.5 A
Brake	Brake Torque	100 N.m
	Exciter Voltage	DC 195 V
Reducer	Type	TU 65 C/125-63
	Transmission Ratio	1:63 / 1300 N.m
Power Supply		3P, 380V, 50Hz
Total Weight(H100m)		8724 kg	17734 kg
